Currently, we have 6x2000 gallon tanks,2x550 gallon tanks.
2000 Gallon: $11000 each
550 Gallon: $3800 each
Please see the descriptions below and the attached documents...
Model: Criveller SSV/FPP
Red fermenter
2000 GAL Tank
Material: Stainless steel 304 28 finish
MAIN CONSTRUCTION CHARACTERISTICS:
Sloped bottom
Truncated top
Stainless steel adjustable legs
Dimensions:
Diameter 2200 mm (7'2.5")
Shell Height 2000 mm (6'6.75")
All our welds are done in TIG Argon Gas supported to better dissipate the heating factor.
Internal welds are cleaned and passivated.
TANK SUPPLIED WITH:

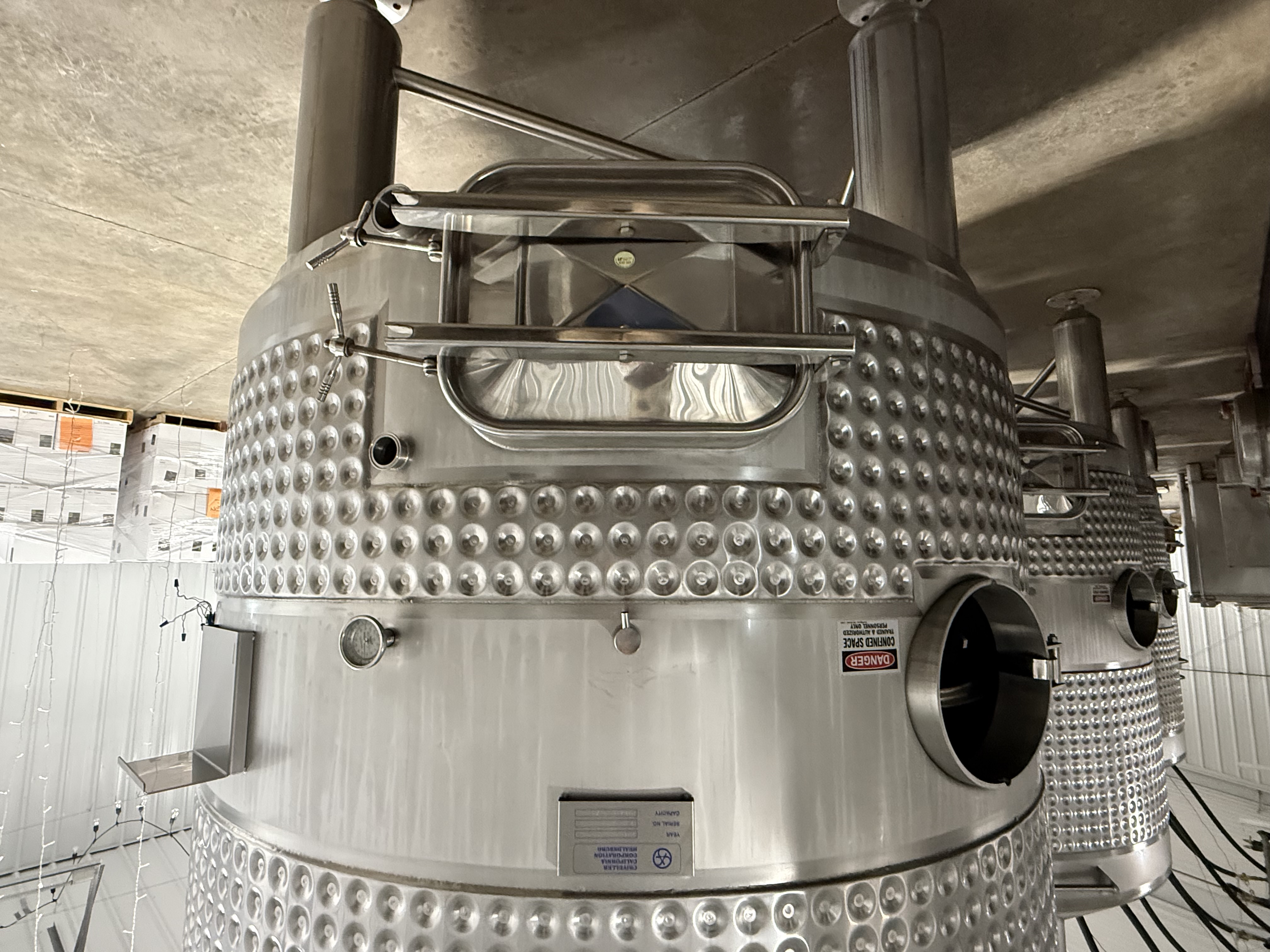

Rectangular manway positioned at the bottom of the shell 530mm x 400mm (21"x16")
Top chimney round -500mm (20")
Total discharge outlet 3" with TRC fittings
Racking outlet 2"with TRC fittings
Sampling valve
Pressure/vacuum relief valve
Thermometer with well
Ladder holder
Probe well
Thermocontroller bracket

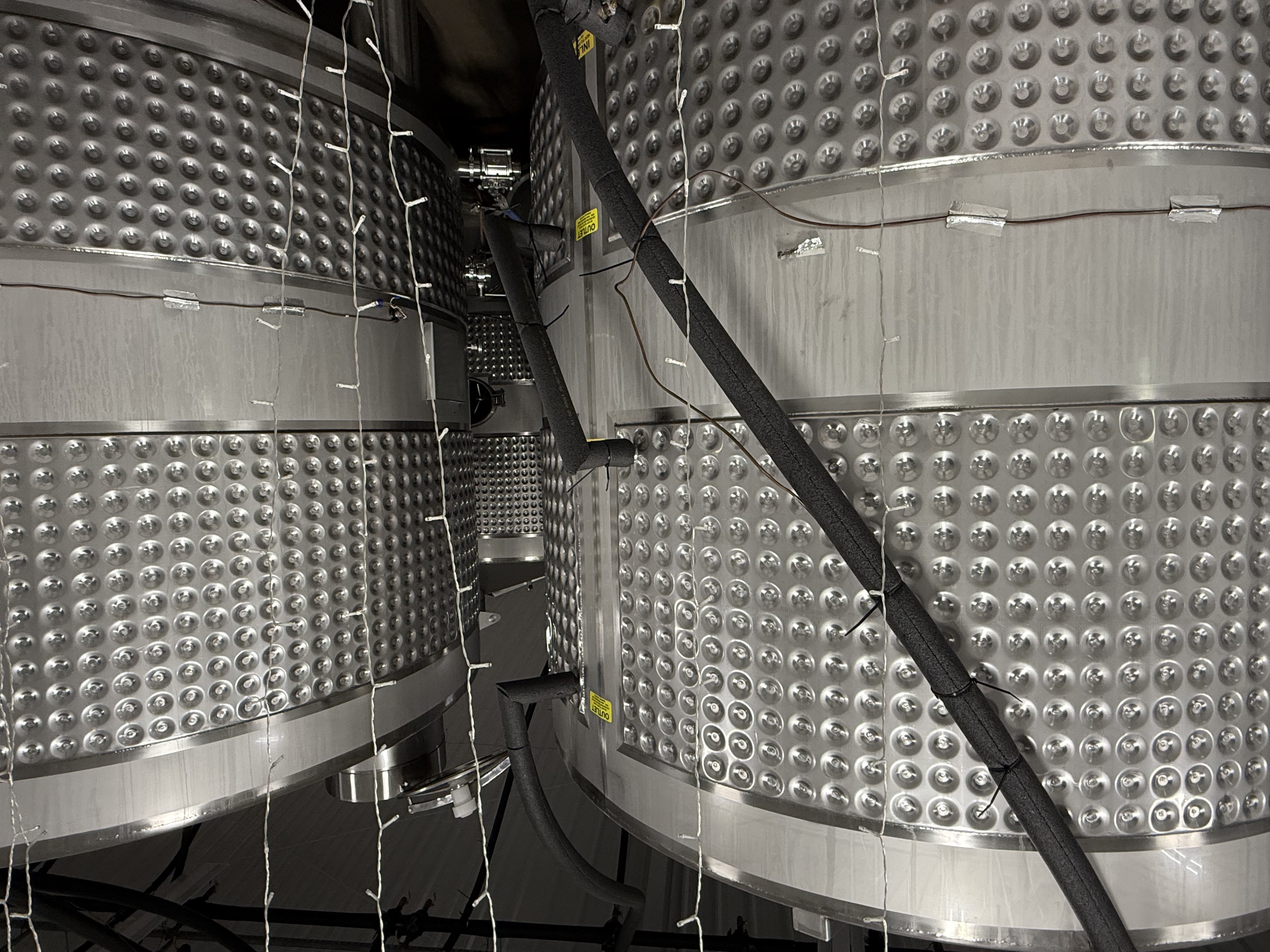

#2 heavy duty dimpled cooling jackets height = 1x750 mm / 1x500 mm (1x30" / 1x20")
coverage = 63.5%
__________________________________________________________________________
TranStore 512076 Stainless Steel IBC Tank - 550 Gallons
Optimal Drainage: The one-piece sloped bottom design ensures uniform and complete drainage, minimizing waste.
Accessible Design: Features a 22-1/2 in. diameter top fill opening with a removable drum cover for easy access and filling.
Versatile Handling: Equipped with 1/4 in. thick combination lifting lugs for both offshore and domestic applications.
Pressure Control: Comes with a pressure relieving and venting device to maintain safe internal pressures.
Stackability: Can be stacked up to four IBCs high depending on tank size and conditions, maximizing storage space.
Comprehensive Valving: Includes a one-piece stamped valve guard, a 2 in. top bung opening, and a 2 in. stainless steel ball valve for precise control of flow.
Durable Construction: 10-gauge stainless steel construction with a 2B finish, offering near limitless service life with minimal maintenance.
Capacity: 550 Gallons
Material Thickness: 10 Gauge
Base Dimensions: 42 in. x 48 in.
Approximate Overall Height: 71 in.
|
|
